Introducing the Ultimate in N52 Induction

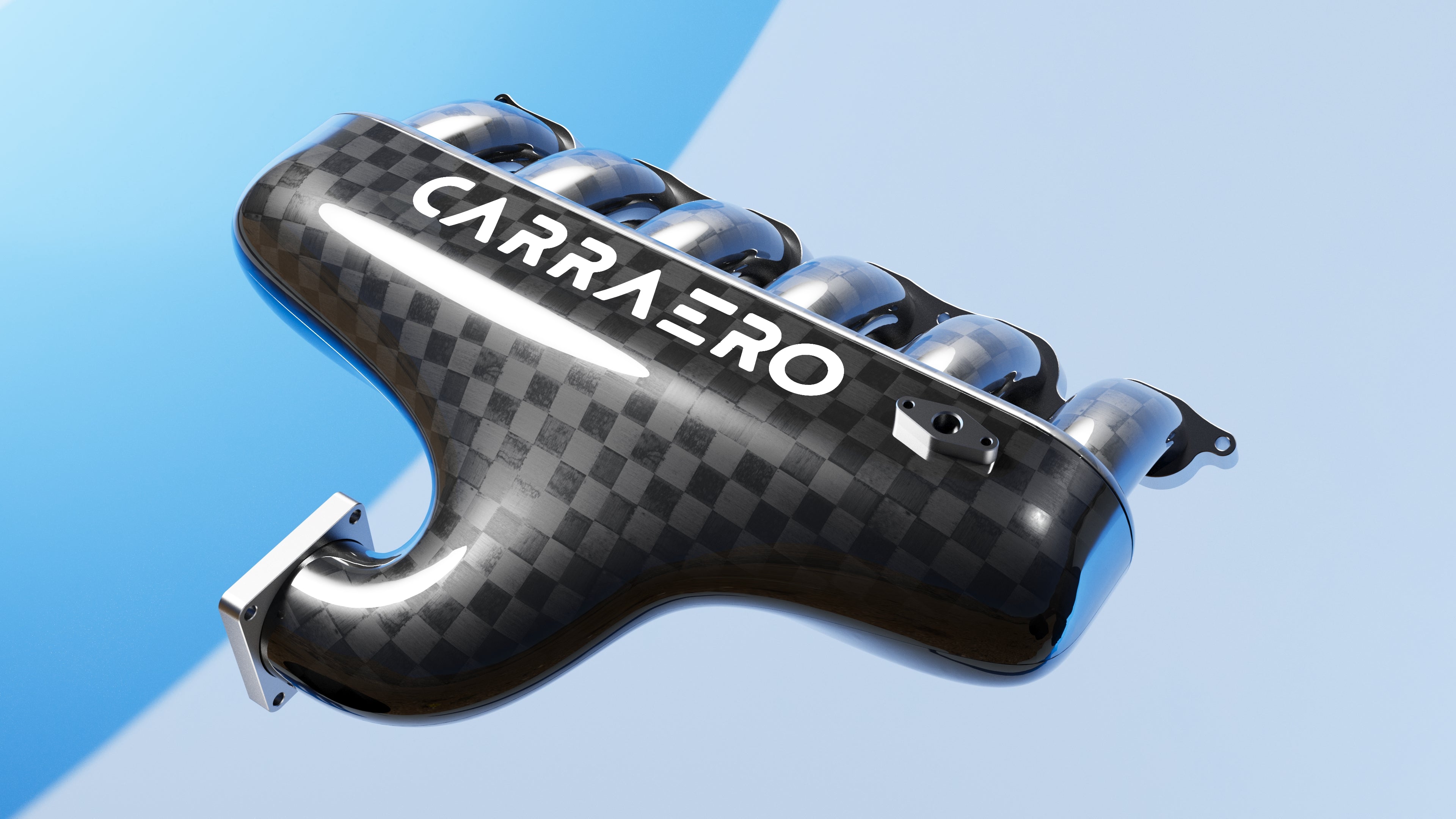

CentroPlenum

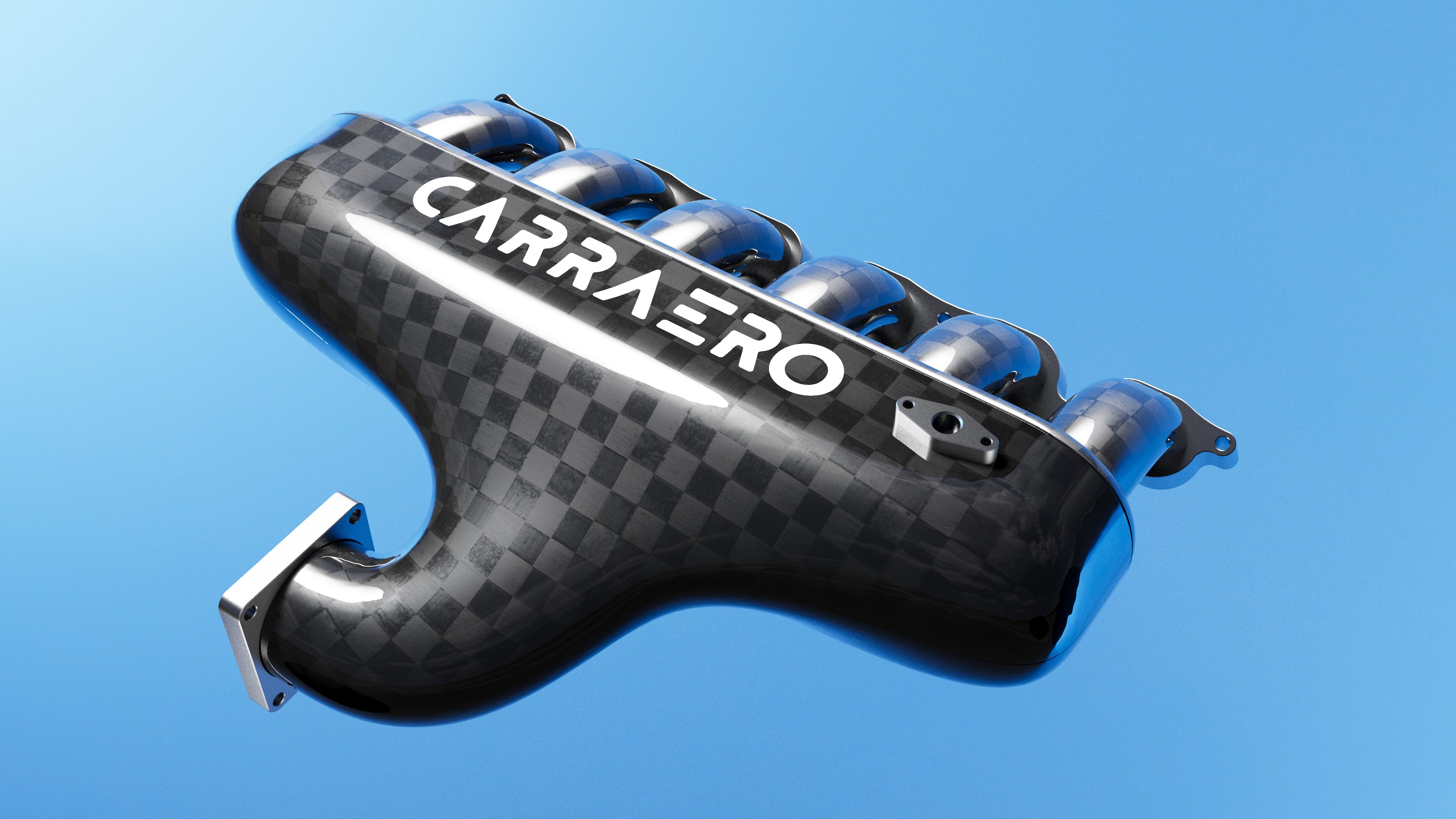

Our organic design language is central to the N52. The plenum is shaped by airflow, creating a unique form that maximises plenum volume while staying within the tight packaging constraints of the engine bay.

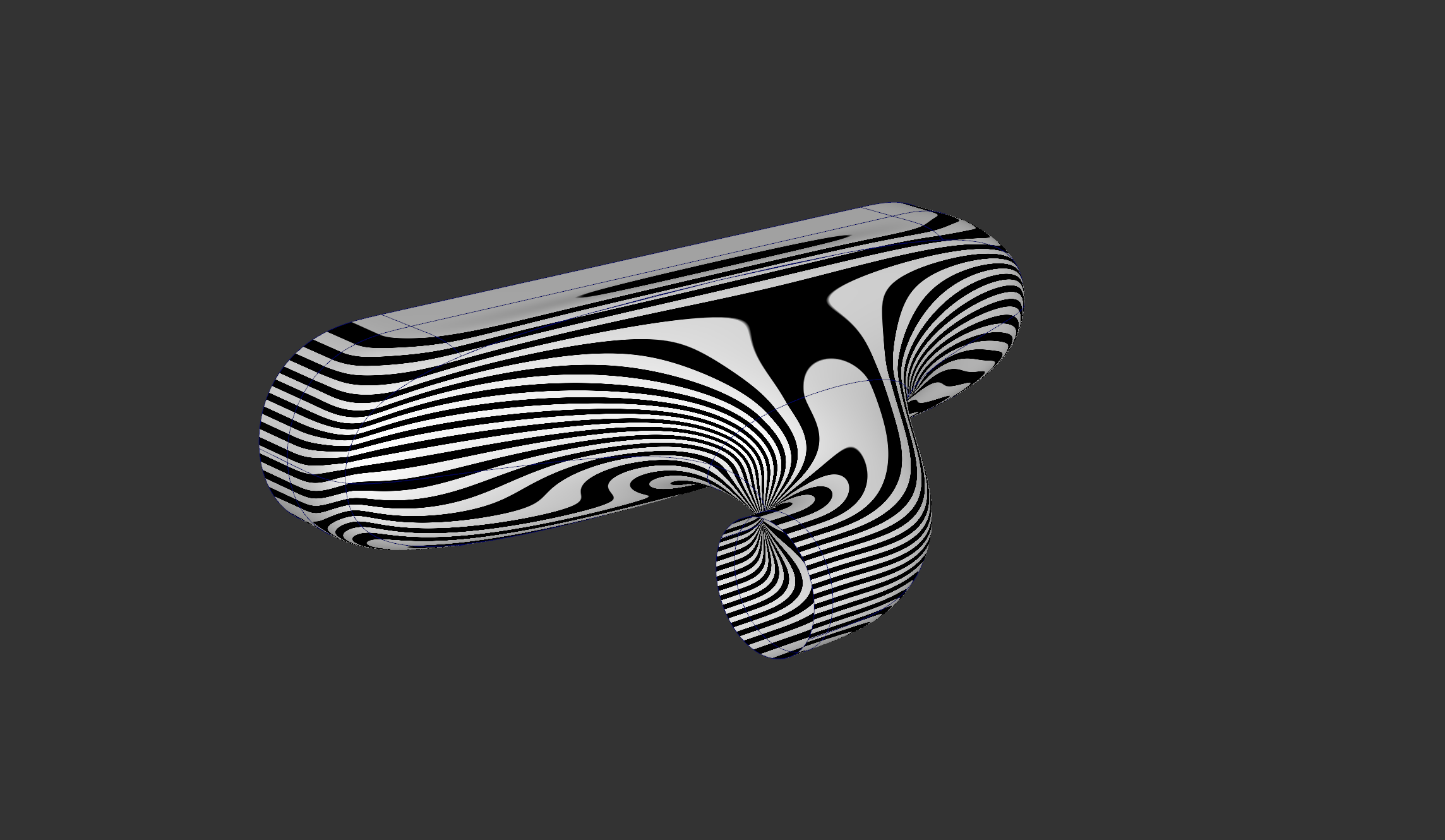

We use the same advanced automotive surfacing techniques employed by leading OEMs with Autodesk Alias, ensuring unrivalled, market leading quality. This is not only illustrated in how the part performs, but also in the clarity and crispness of the reflections. This approach is key to achieving our signature, organic aesthetic - directly shaped by airflow.

Airflow Driven Form

Superior Flow Distribution

to every cylinder

CentroPlenum uniquely offers 100% flow distribution to each cylinder - a feat nealy impossible for conventional intake manifolds of front engined, rear-wheel drive vehicles

Raw Induction Power

120 Hours of Dyno Validation

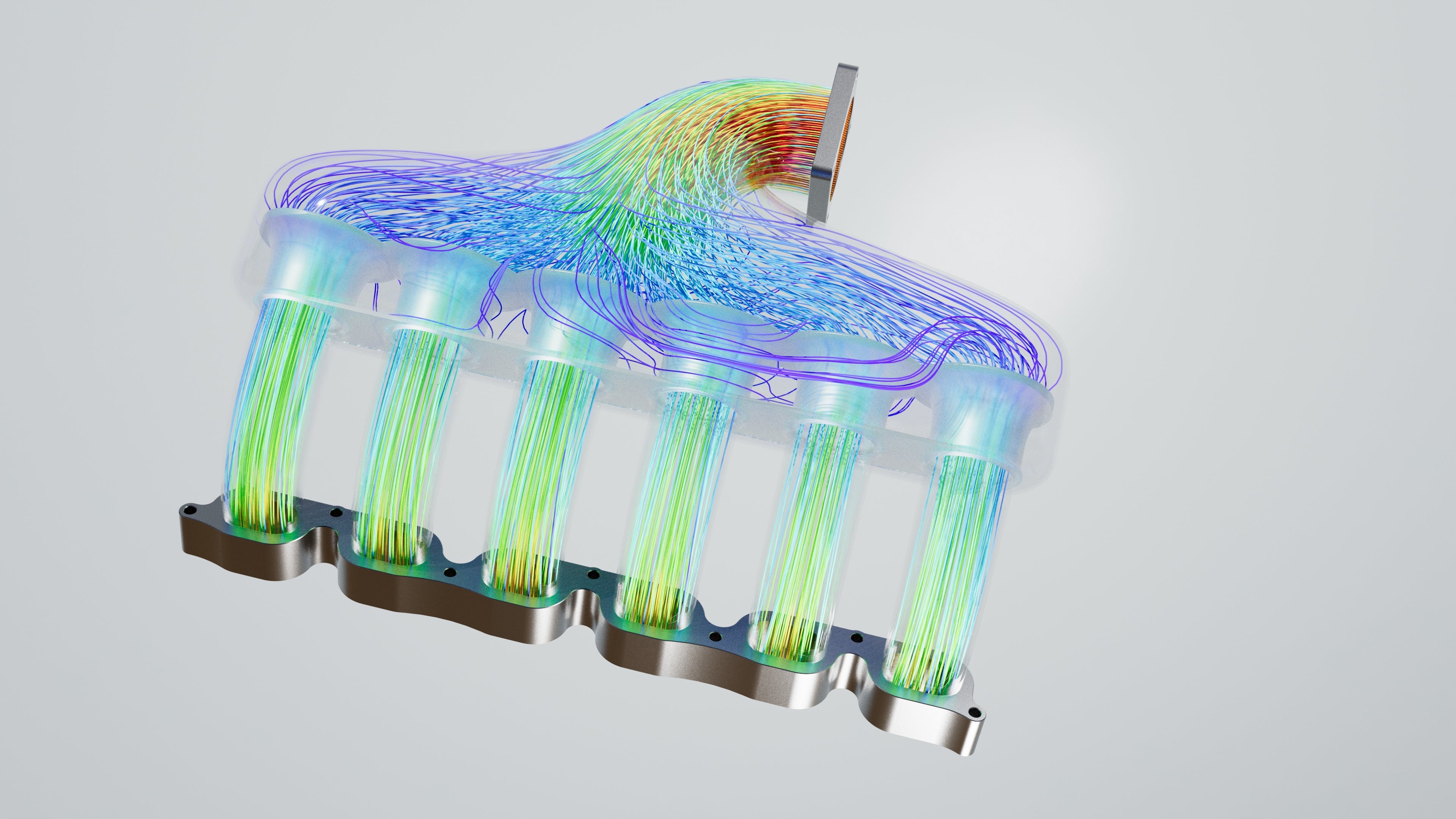

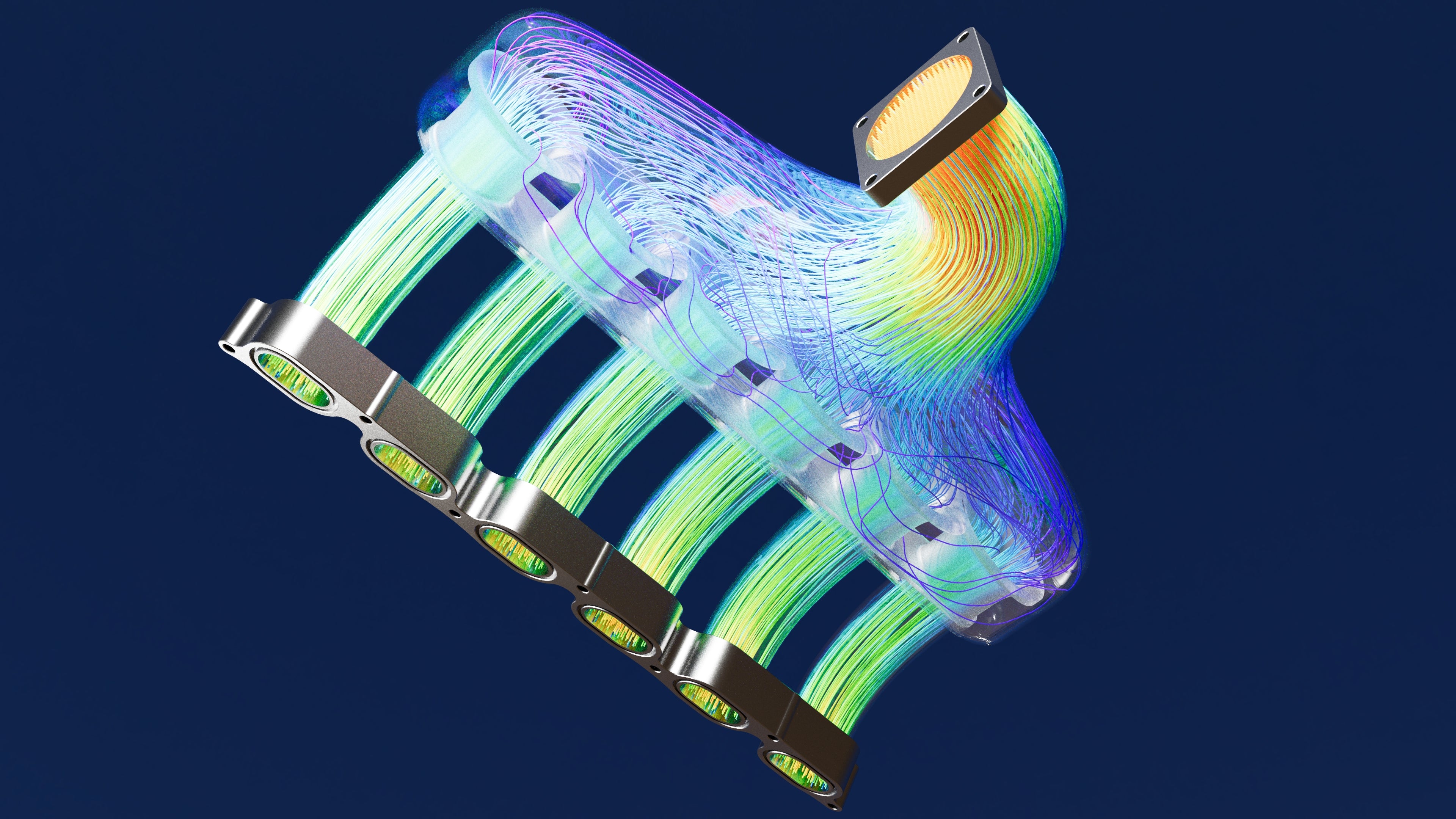

400 Hours of CFD* Simulation

*Computational Fluid Dynamics

A Revolutionary Development in Plenum Design

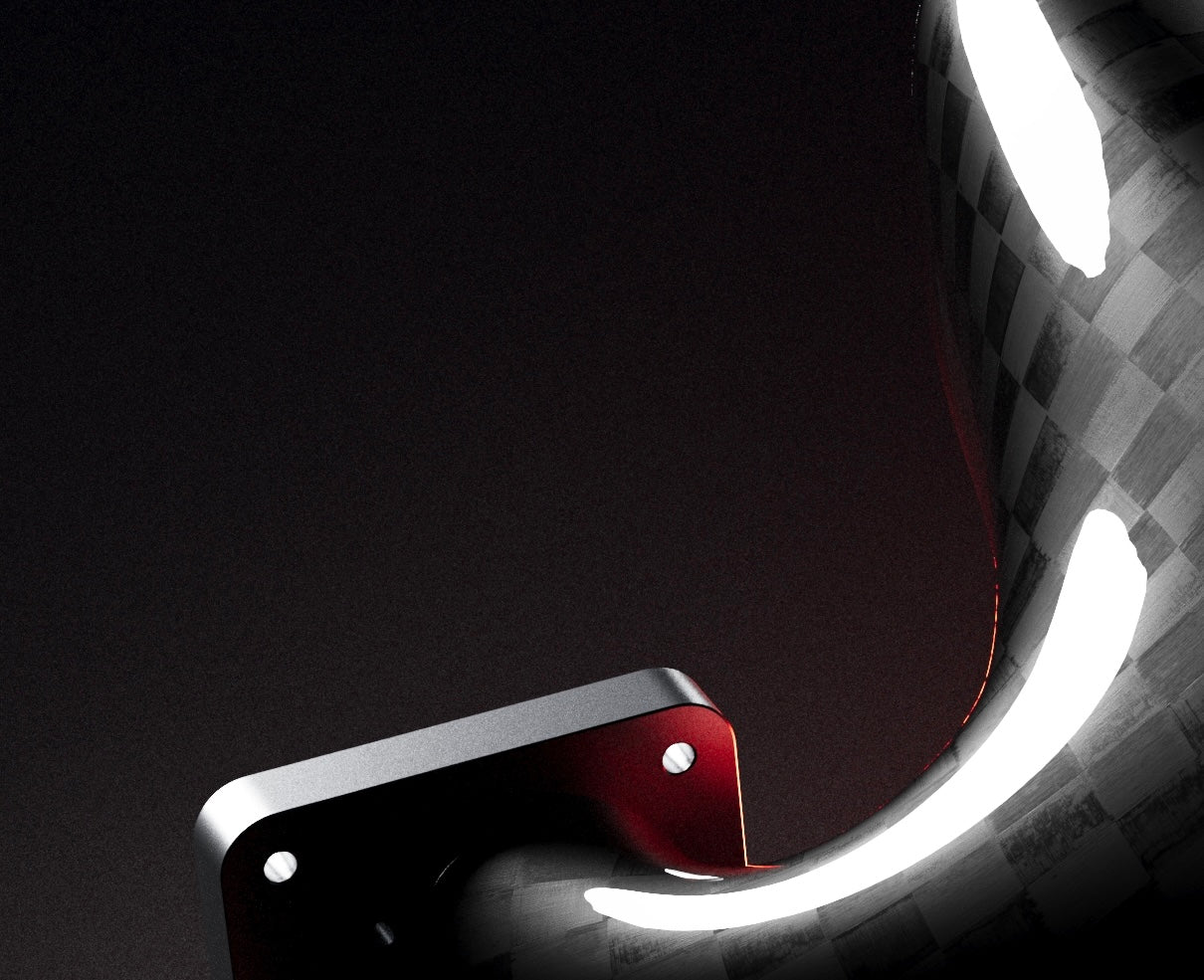

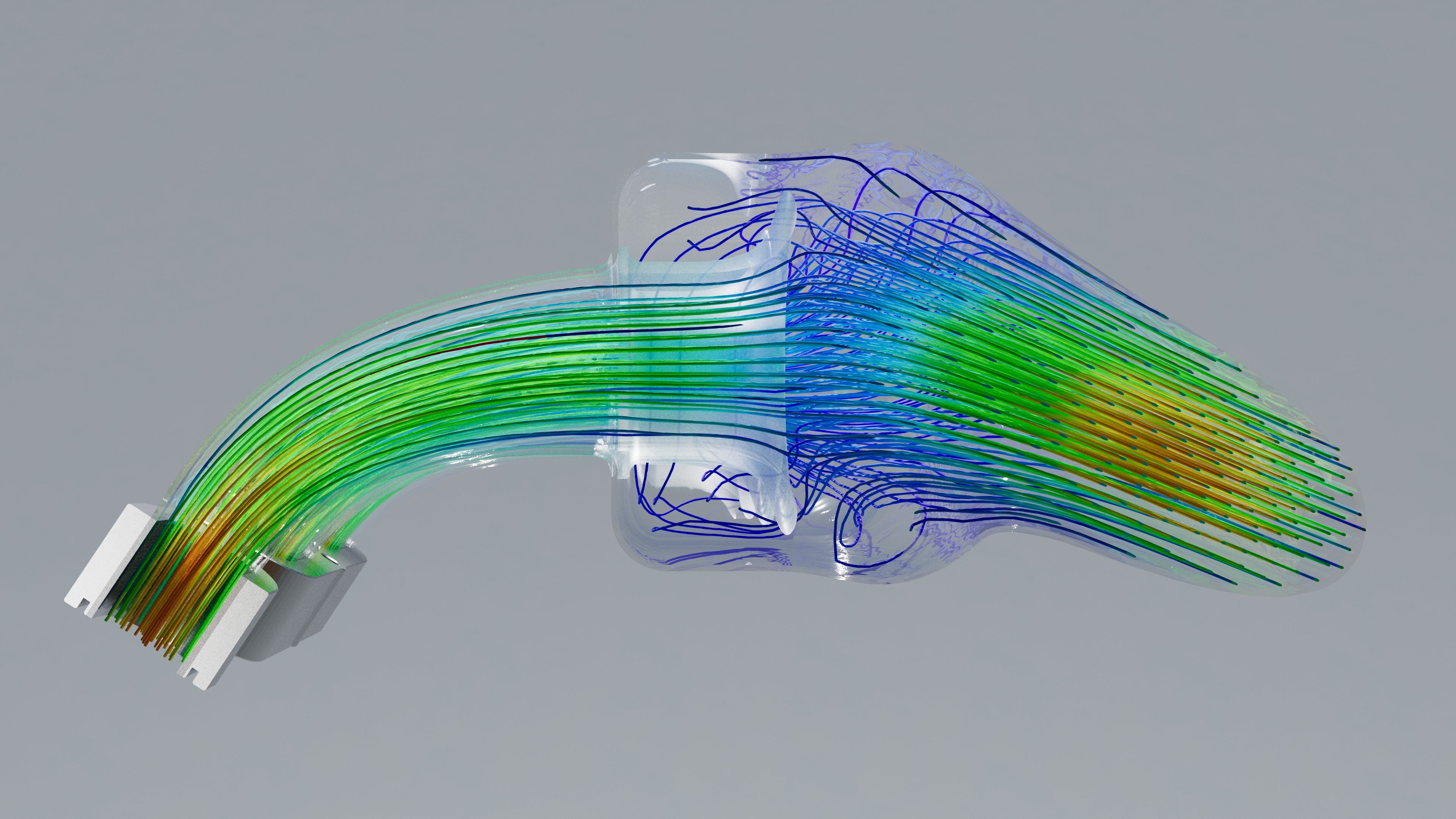

Expanding Inlet Curve

The continually expanding inlet bend means completely laminar flow without any turbulence that is typically found in tight, straight walled elbow bends. This is because at high RPMs, airflow resists any change of direction due to its inertia at very high velocities.

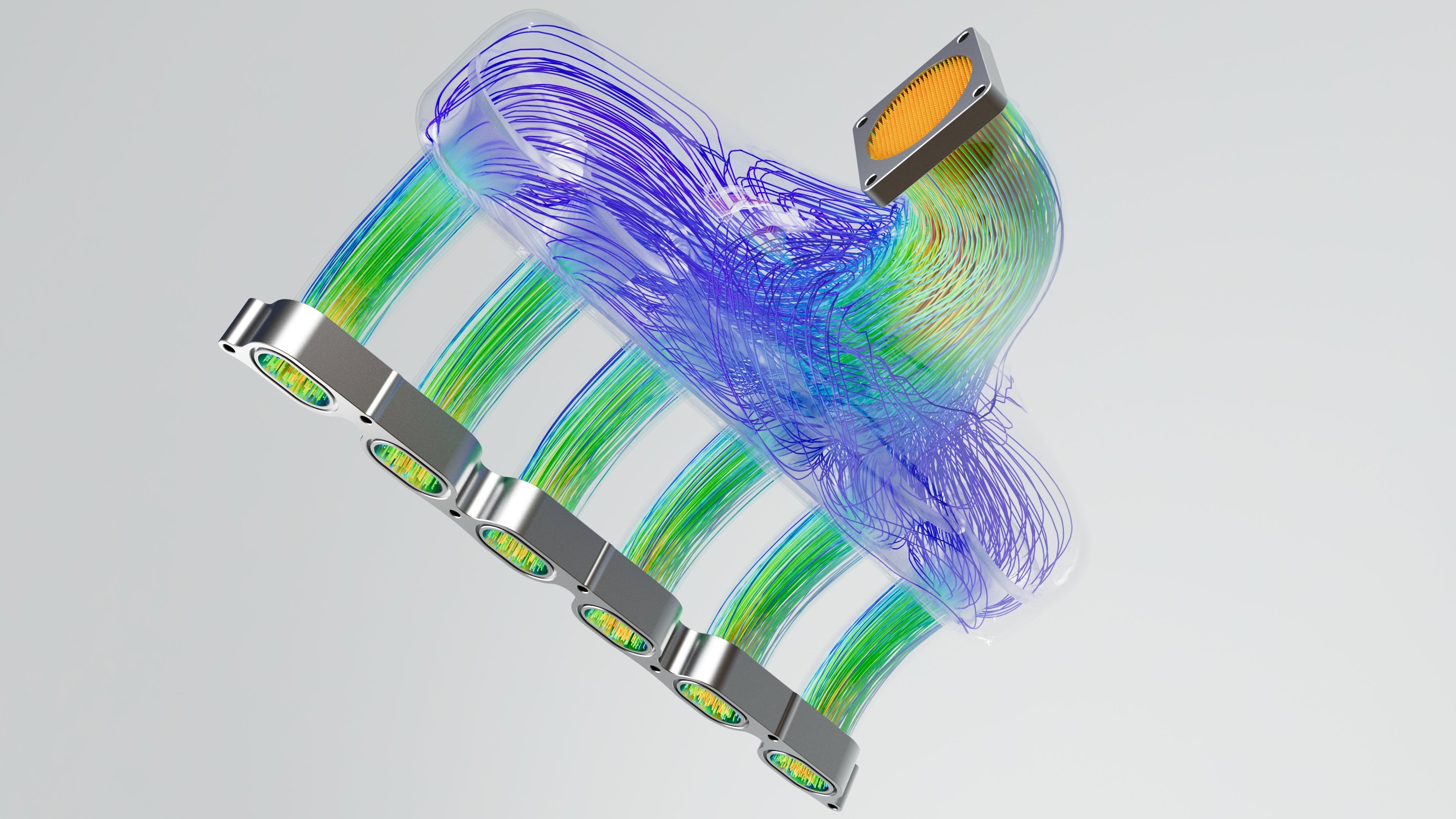

Exceptional Flow Distribution

In a RWD application, almost all inlet designs result in reduced filling of the first few cylinders. This is because most designs don't allow for ample space to expand and turn the intake charge, which means excessive turbulence and poor distribution.

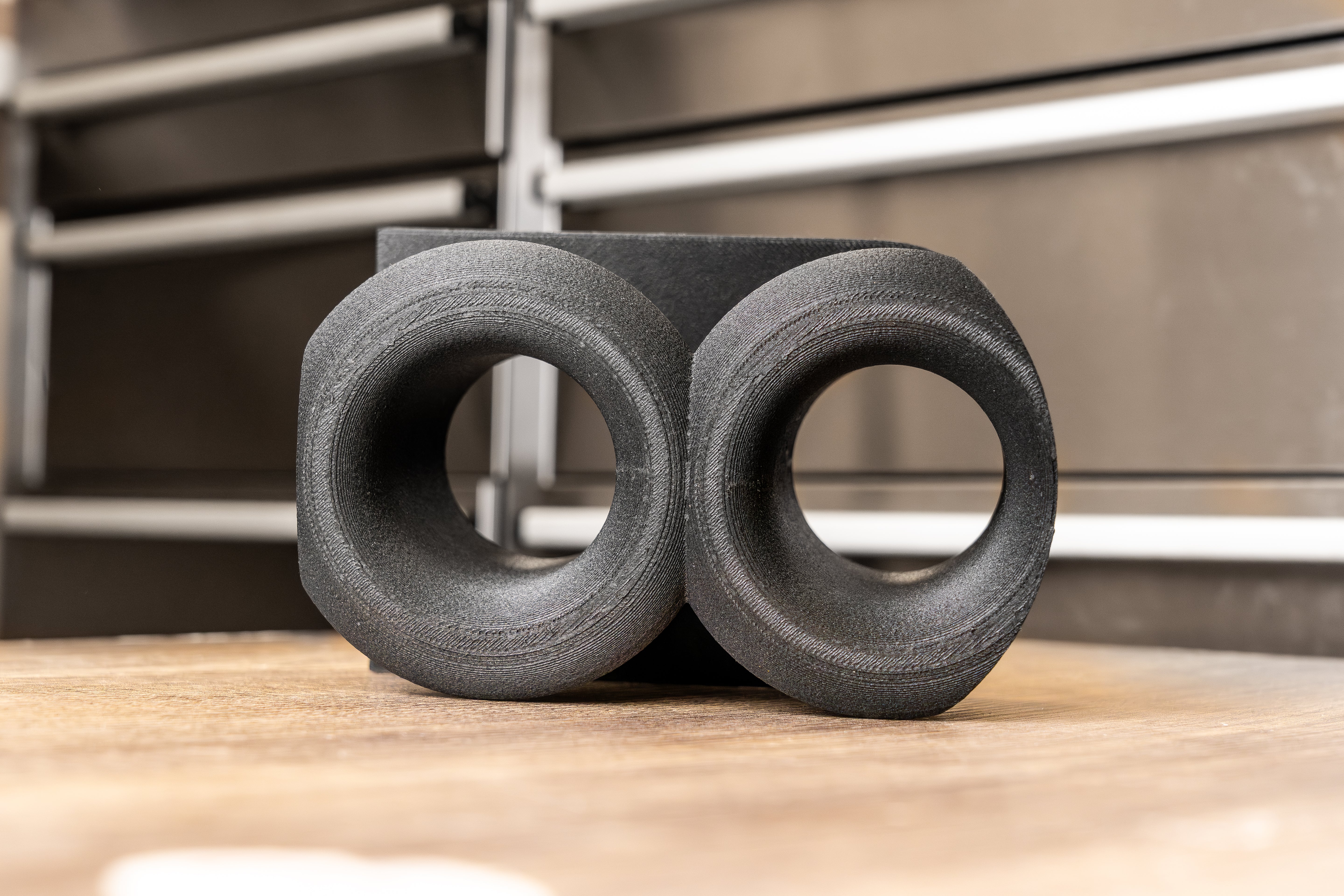

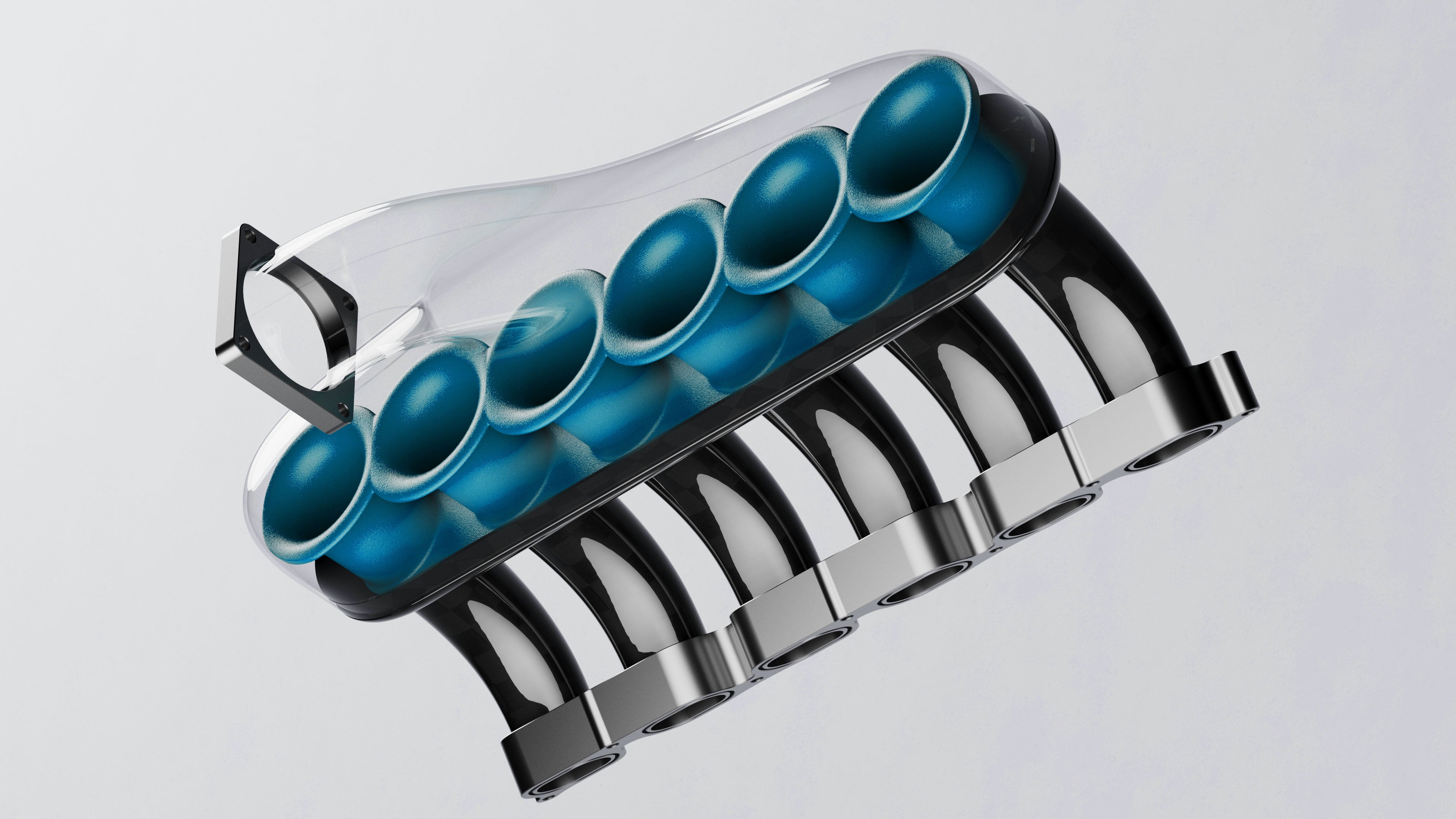

Bell Mouth Trumpets

Sculpted by air and verified on the dyno, our proprietary trumpet design allows for exceptional intake runner draw, drastically improving the volumetric efficiency of the engine. The raised design allows for the intake pulses to draw from behind the trumpet itself, further improving the strength of the intake charge into the combustion chamber.

Minimal Turbulence

This results in minimal loss of energy of the intake charge, drastically improving the effiency of the intake plenum and contribution to more power and torque, everywhere in the rev range.

Expansive Volume

CentroPlenum's expansive volume means greater area for the individual intake pulses to stabilise throughout the firing order, resulting in more available air for each cylinder.

CentroPlenum

Why CentroPlenum is the Ultimate Intake System

Resonance Tuned Carbon

Induction Noise Like No Other

CentroPlenum has been specially tuned to resonate and amplify the natural induction frequencies that are waiting to be unlocked, giving a much-needed transformation to the N52 soundtrack.

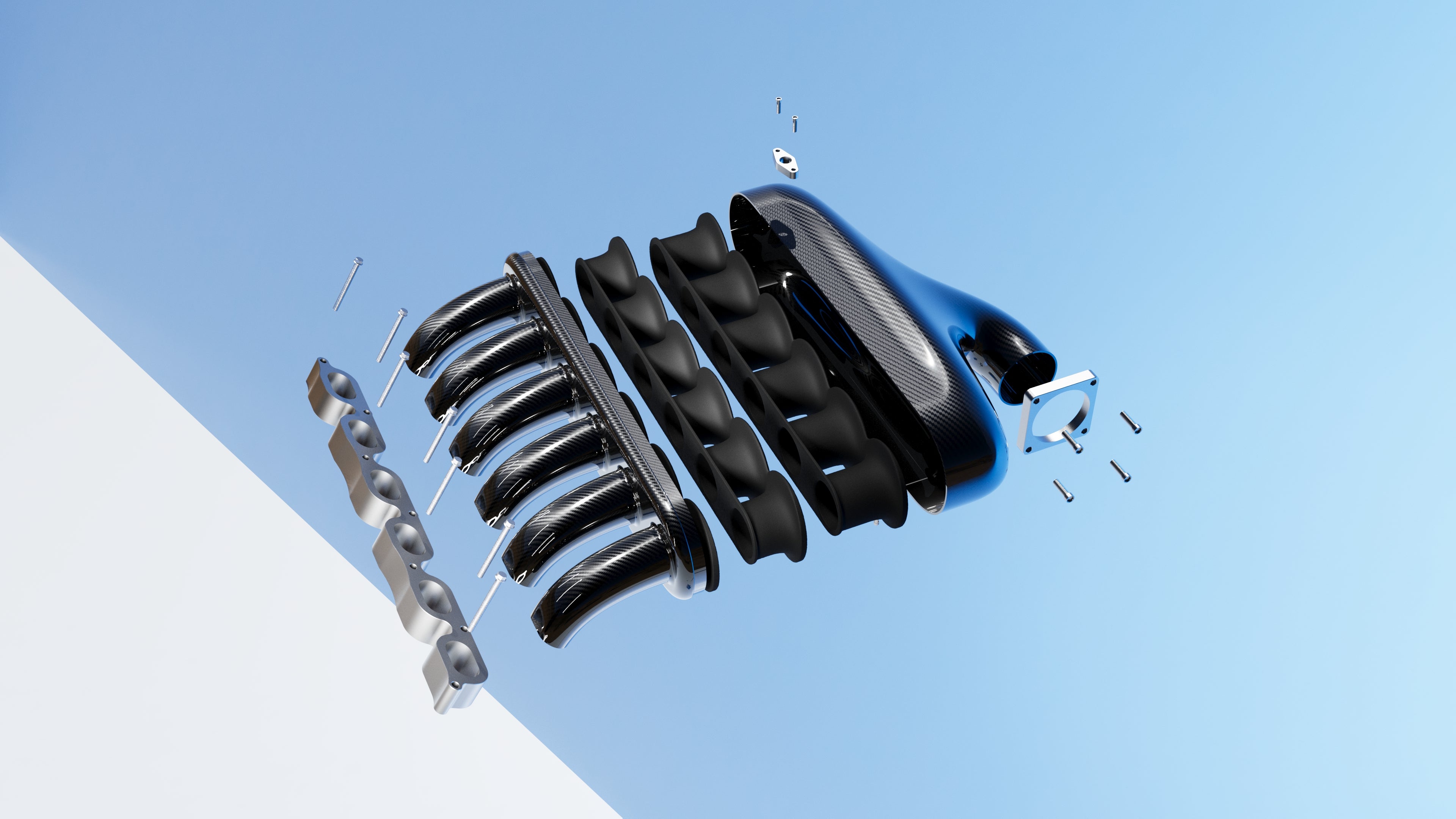

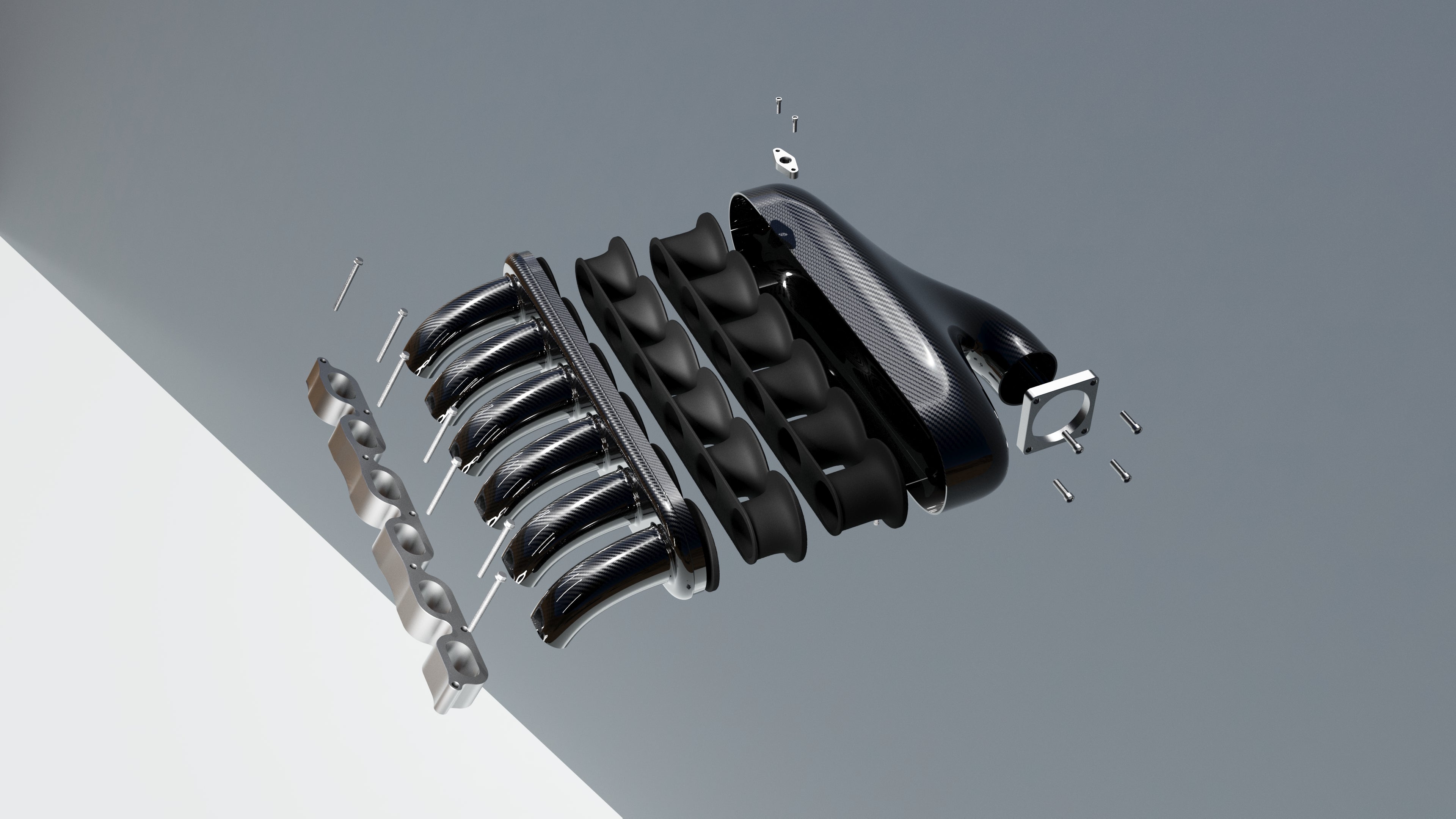

A specially developed flange design between the runners and plenum body result in excellent strength, vacuum sealing, and rigidity using a high-temperature, two-part epoxy resin bond that is stronger than the carbon it joins.

This allows the main plenum body to be thinner in select areas, allowing CentroPlenum to further amplify and reverberate the induction growl into the cabin.

Atelier

Stand out from the Crowd

Customise every aspect of your Bespoke CentroPlenum

Choose Your Trumpets

Choose between 3 different trumpets for vastly different torque curves and engine characteristics

The Split Airbox Option allows for user changeable Trumpet sets for the ultimate road and track flexibility - recommended for throttle body deleted cars only

01

Road Trumpets - Stage 1

With a 6500-7000 RPM Peak Power band, the Road Trumpet set offers improved power and maximises low-down and mid range torque for a good compromise between everyday usability while still providing an even more thrilling top-end.

02

Sport Trumpets - Stage 2

Sport Trumpets offer an even more exciting driving experience for both fast-road and track use. With an RPM range of 7000 - 7500, this option is recommended for mapped cars, allowing more power to be produced with increased revs while still maintaining an exceptional torque spread for day-to-day driving duties.

03

Race Trumpets - Stage 3

As the shortest and most aggressive Trumpet set, Race offers improved velocity stack umbrella geometry for a peak power range of 7500 - 9000 RPM. This is only recommended for highly tuned engines using short-stroke or forged rods with cams to make the most of the increased revs.

01

Road Trumpets - Stage 1

With a 6500-7000 RPM Peak Power band, the Road Trumpet set offers improved power and maximises low-down and mid range torque for a good compromise between everyday usability while still providing an even more thrilling top-end.

02

Sport Trumpets - Stage 2

Sport Trumpets offer an even more exciting driving experience for both fast-road and track use. With an RPM range of 7000 - 7500, this option is recommended for mapped cars, allowing more power to be produced with increased revs while still maintaining an exceptional torque spread for day-to-day driving duties.

03

Race Trumpets - Stage 3

As the shortest and most aggressive Trumpet set, Race offers improved velocity stack umbrella geometry for a peak power range of 7500 - 9000 RPM. This is only recommended for highly tuned engines using short-stroke or forged rods with cams to make the most of the increased revs.

35 - 45BHP Increase

When Tuned*

*130i N52B30 standard throttle body and MAF, Sport Trumpets & ITG Filter

100% Plug & Play*

For E8x 1 Series & E9x 3 Series which can use the stock MAF & filter housing location

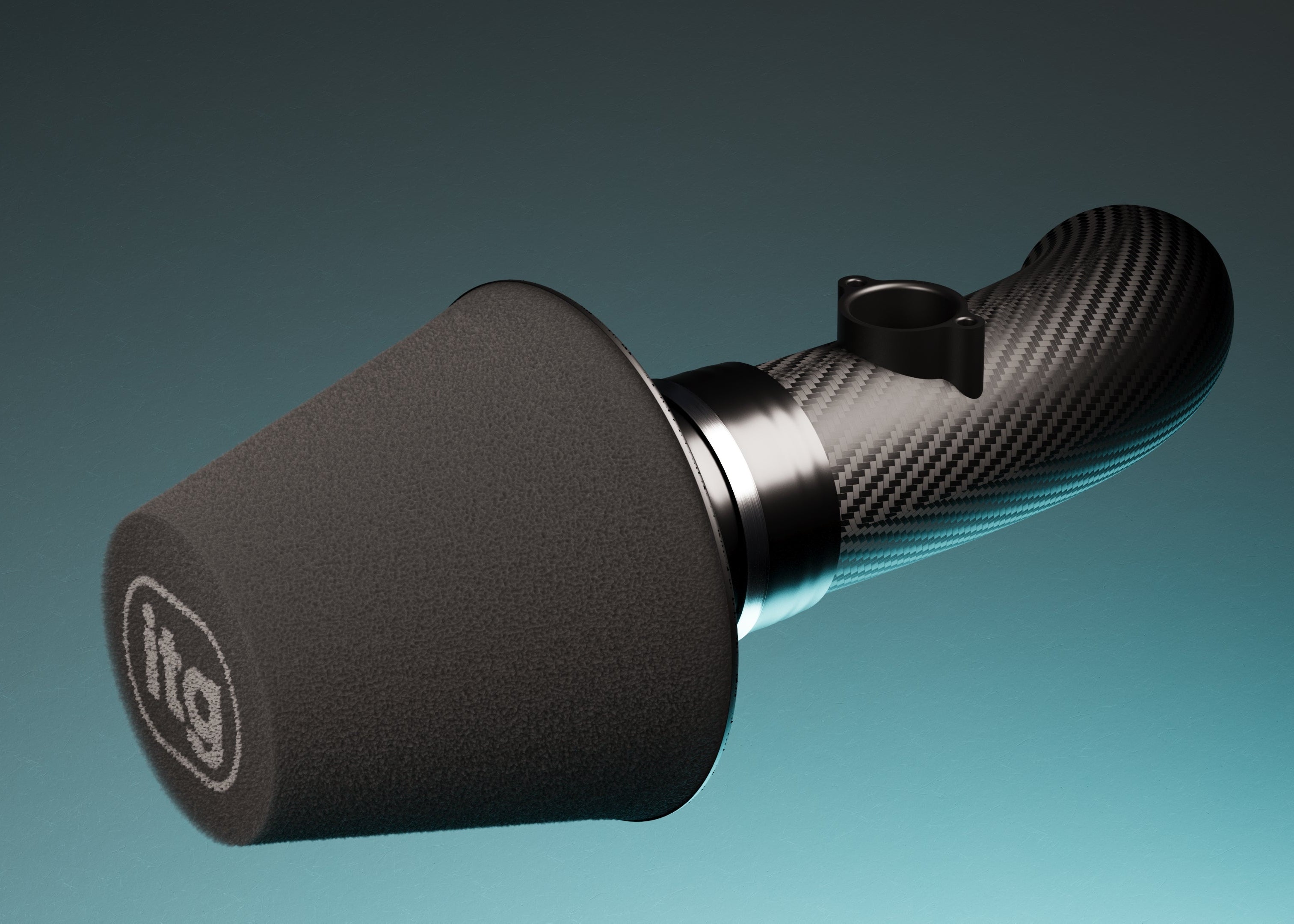

Other vehicle models may need silicone adapters or aftermarket air filter/custom MAF housing setups. A Carbon MAF Tube and ITG Filter is available for those vehicles

As Standard Specification

Compatible Models

BMW E8x 1 Series

BMW E9x 3 Series

BMW E6x & F1x 5 Series

BMW E6x 6 Series

BMW E6x & F0x 7 Series

BMW E85 & E86 Z4

BMW E89 Z4

BMW E84 X1

BMW E83 X3

BMW E70 X5

BMW F25 X1

Models able to use stock MAF housing & filterbox location

BMW E8x 1 Series

BMW E9x 3 Series

BMW E84 X1

Engine Code

N5BB30

N52B30N

N52B30K

Compatible PCV Variant

Silver & Black Valve Cover - All Variants

Throttlebody Size

76mm

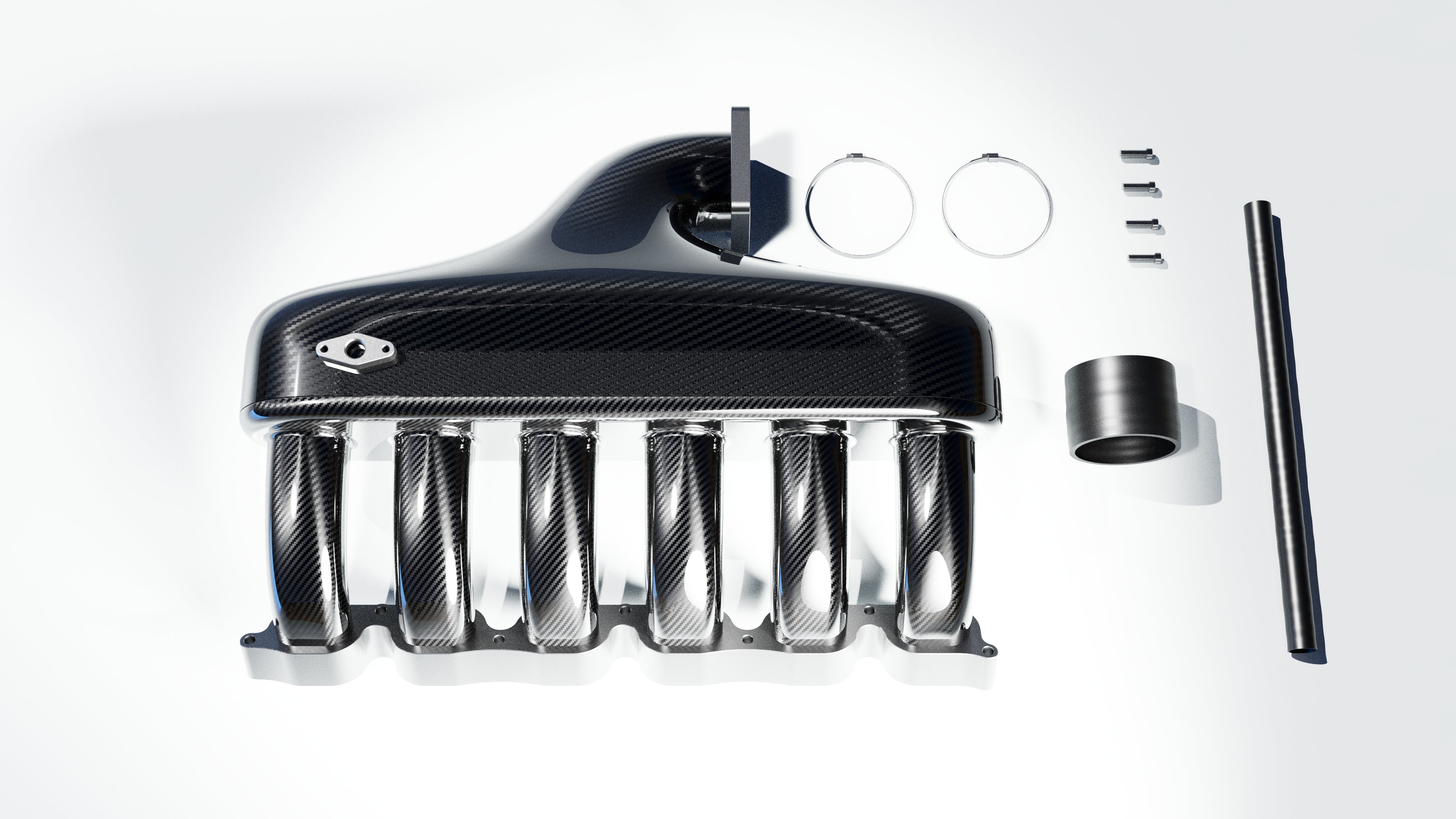

Included

Straight Out of the Box

  • 4X Bolts for MAP & PCV Standoffs
  • Silicone Coupler & Jubilee Clips
  • PCV Adapter Hose for Black Valve Cover Cars

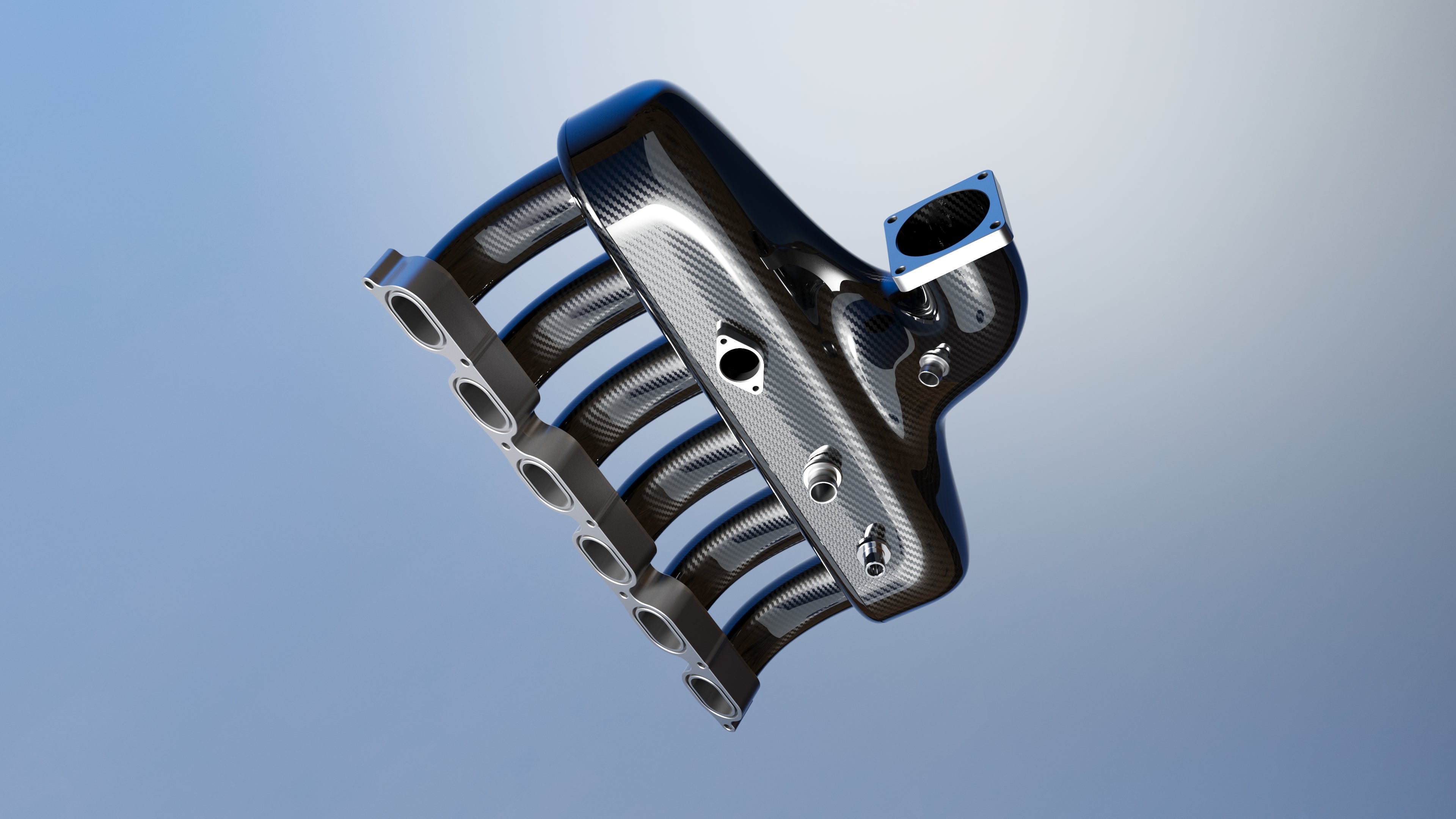

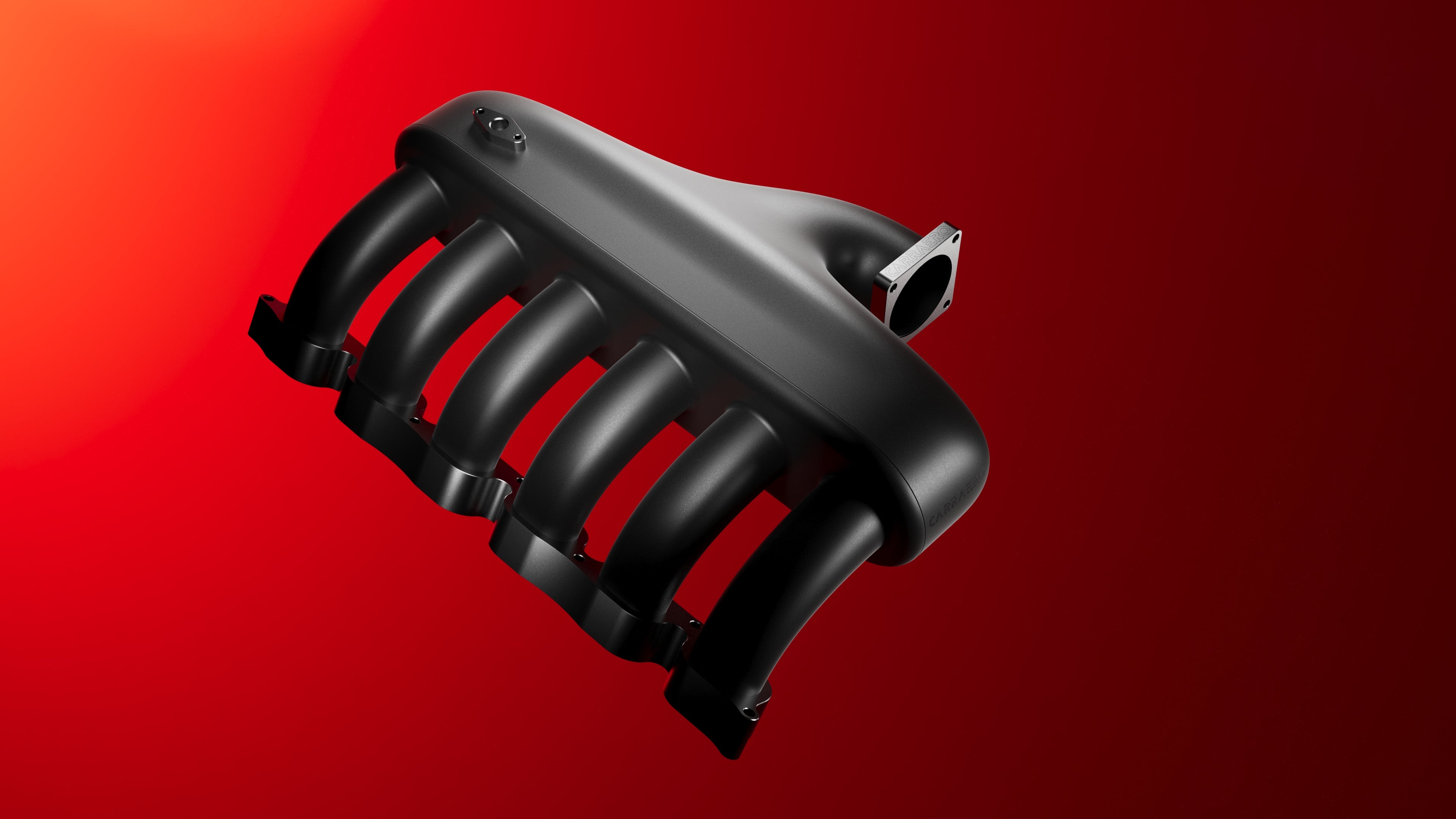

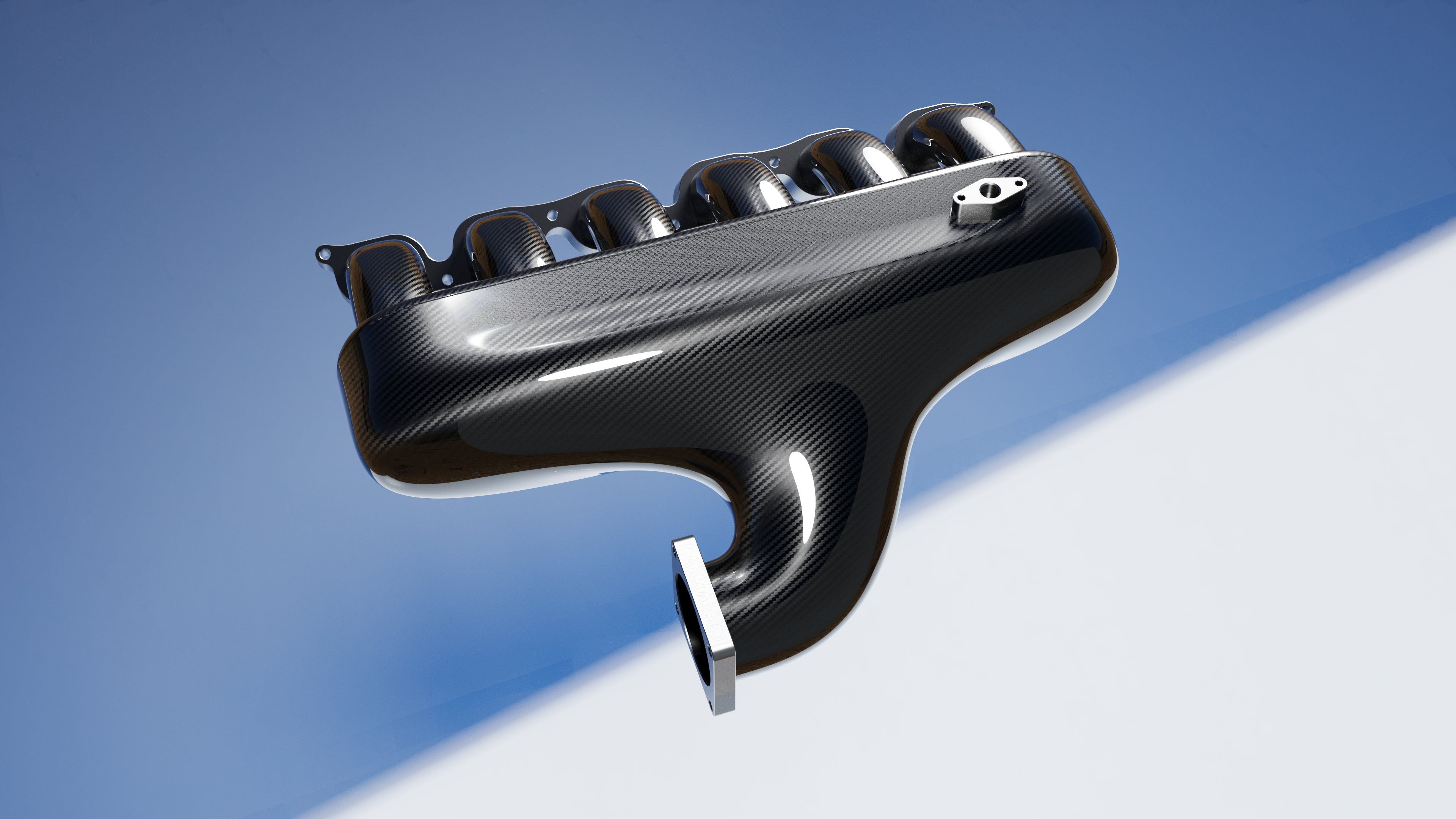

BMW N52B30 Full Carbon CentroPlenum

Sale price£1,699.00 GBP

Tax included. Shipping calculated at checkout


Import Duties Prepaid + Free Shipping

Free UK and European shipping with all import taxes and duties completely prepaid, no fees to pay on arrival into your country.

It is up to the customer to ensure local road law and legislation compliance before using Carraero products on the public highway.

No customization has been created for this 3D model.

You can create a customization now by clicking here

(Don't worry! Your customers will not see this error message on your store carraero.com.)

LOADING 3D CONFIGURATOR

3D Configurator

Customize

Complete the Set for the Ultimate N52 Upgrade

Enjoy maximum power gains and induction noise for E8x 1 Series and E9x 3 Series vehicles.

BMW N51 N52 N53 Carbon Acoustic Cover
BMW N51 N52 N53 Carbon Acoustic Cover Sale priceFrom £299.00 GBP Regular price£349.00 GBP
BMW N52 ITG Air Filter BDS Motorsport Edition
BMW N52 ITG Air Filter BDS Motorsport Edition Sale price£149.00 GBP Regular price£169.00 GBP
Save £50.00
BMW N51 N52 N53 Carbon Acoustic CoverBMW N51 N52 N53 Carbon Acoustic Cover
BMW N51 N52 N53 Carbon Acoustic Cover Sale priceFrom £299.00 GBP Regular price£349.00 GBP
Save £20.00
BMW N52 ITG Air Filter BDS Motorsport EditionBMW N52 ITG Air Filter BDS Motorsport Edition
BMW N52 ITG Air Filter BDS Motorsport Edition Sale price£149.00 GBP Regular price£169.00 GBP

Production Timeline

Your bespoke CentroPlenum starts by choosing your unique specification from thousands of different option combinations. Create the centre piece that your pride and joy has always been missing.

CNC Flange Machining

All flanges and fittings, whether titanium or anodised aluminium, are machined entirely in-house on our state-of-the-art, 5 Axis CNC using the finest German tooling.

CNC Fitting Turning

Fittings such as the brake booster and fuel vapour are machined directly on a CNC Lathe.

Vapour Bead Blasting

Using the finest ceramic media for an even, high satin sheen, removing all machine marks and deviations.

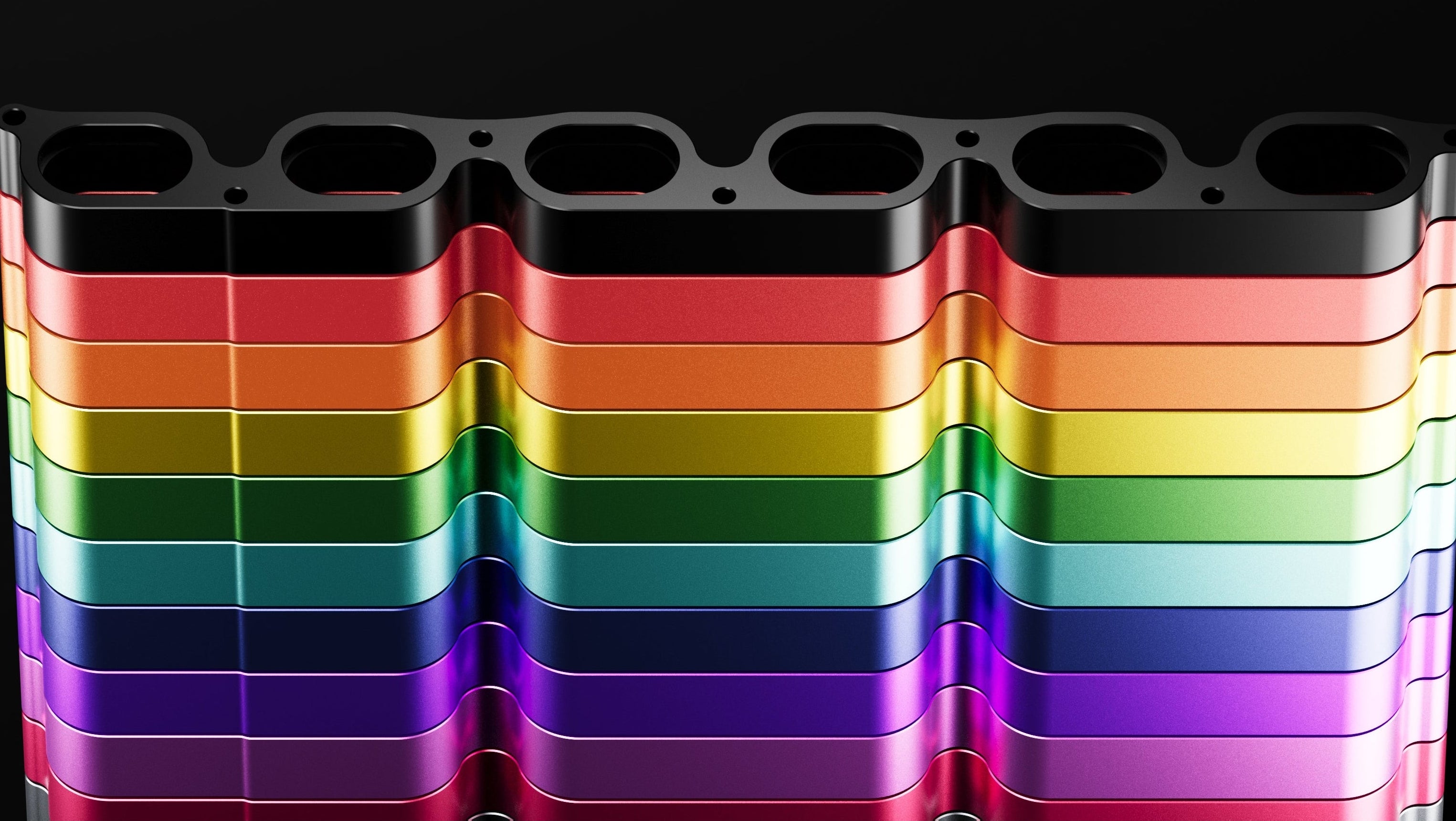

Colour Anodising

Chemical Type II aluminium anodising in a wide range of colours and contrasts is done entirely onsite with 800 Amp rectifiers and the highest quality organic dyes.

Trumpet Production

Your desired specification of trumpet length is additively produced using advanced carbon fibre 3D Printing. The plenum and trumpets are then adhered using an ultra-high-strength, two-part epoxy body adhesive.

Prepreg Carbon Lay-up

Production begins on the plenum body and runners, where Motorsport-grade pre-preg carbon fibre is hand laid in-house into our own billet aluminium moulds. This is then pressure-cured under extreme vacuum and temperature to form an extremely high-strength, lightweight structure.

Finishing

Once cured, the prepreg carbon is carefully hand-finished with hours of fine sanding. Once levelled, the surface is professionally spray-lacquered using several coats, and then satin or tinting pigment is applied to the final coat.

Shipping

Your unique plenum is serialised, recorded and carefully packaged with an tracking provided of the shipping timeline.
